Teknimek manufacture the complete proofer system.
Originally called the 'Peach Proofer', the system is now completely manufactured by Teknimek in the manufacture and sales of the complete proofer system.
We have had close ties with the Mickle Laboratory company for many years and will still continue to work closely together for the continuation of what is considered by some, to be the 'Industry Standard' for testing Ink.
The proofer system comprises of two units. The 'Inker' and the 'Printer'. The 3 roller inker is used to evenly coat a 50mm wide printing disc.
To do this, a specified amount of ink is placed onto a 'distribution' roller which then quickly transfers ink to the Printing disc.
The Printing disc is then placed on the printer where, by using a standard speed and controlled pressure, it can print onto paper, carton board, tinplate and plastic.The Rollers can be supplied for conventional or UV inks. The complete printing proofing system.
For further information please download our leaflet below
Blanket Print Disc
Print Disc with removable blanket. The disc is transferred From the inker to the printer where it is then transferred to the substrate. The Blankets can replaced when worn.
Solid Print Disc
Solid 'PU' Print Disc. The disc is transferred From the inker to the printer where it is then transferred to the substrate.
The distribution roller is where the ink is placed either by volume or weight and is available for 'UV' and 'Conventional' Inks.

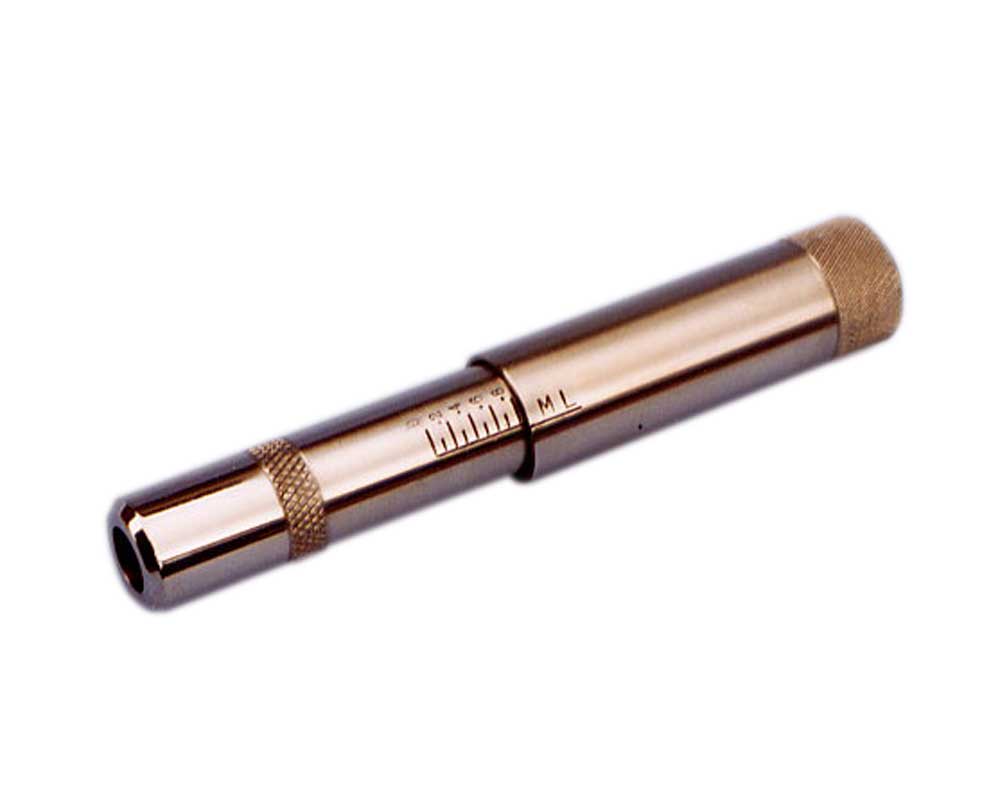

Measures ink volume up to 1 gram with increments of 1 milligram. The body is made of S/S with a brass inner.
